Fish Analyzer
Real-Time View of Catch
Instant view straight to the ship’s bridge. Large time savings - no need to haul up the trawl. Valuable fisheries surveys tool.
Key benefits:
- Increased efficiency during surveys
- Real-time subsea video feed to bridge

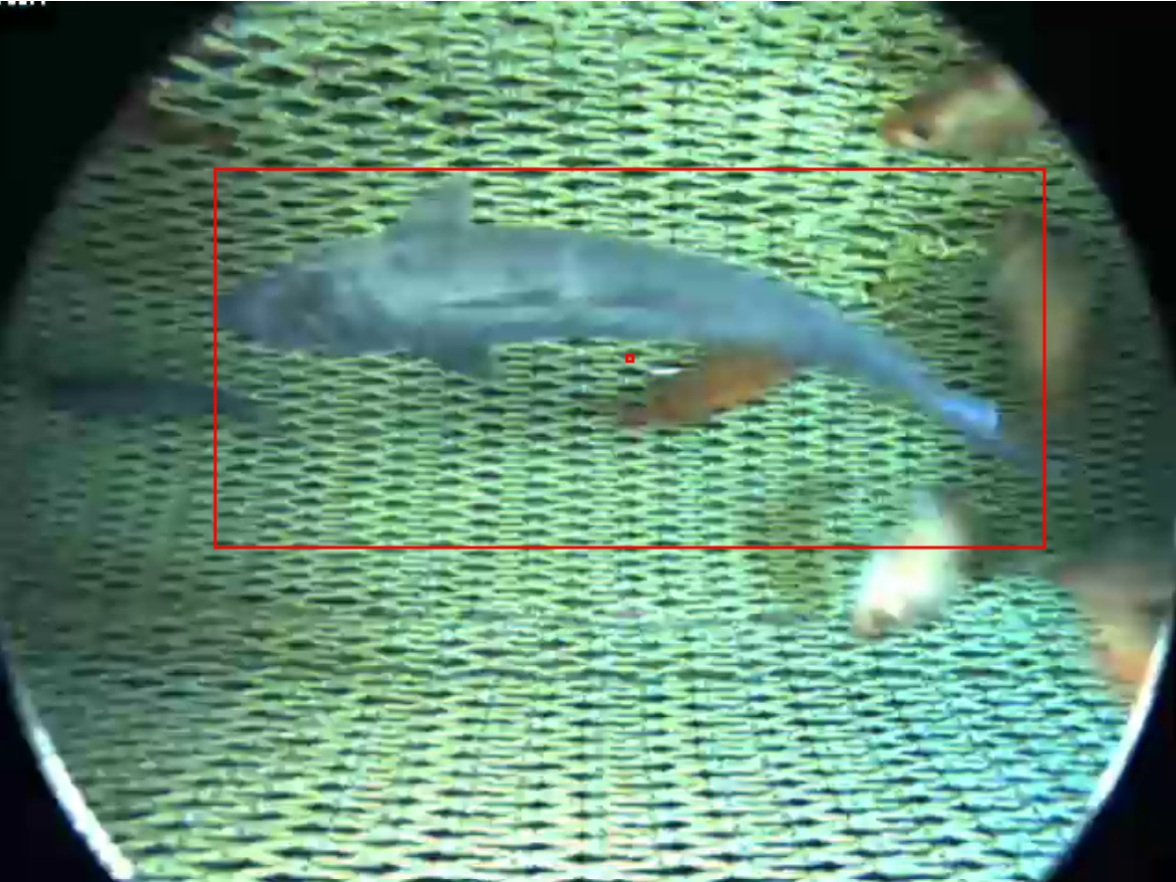

- Fish length measured at anytime
- Start/stop video recording

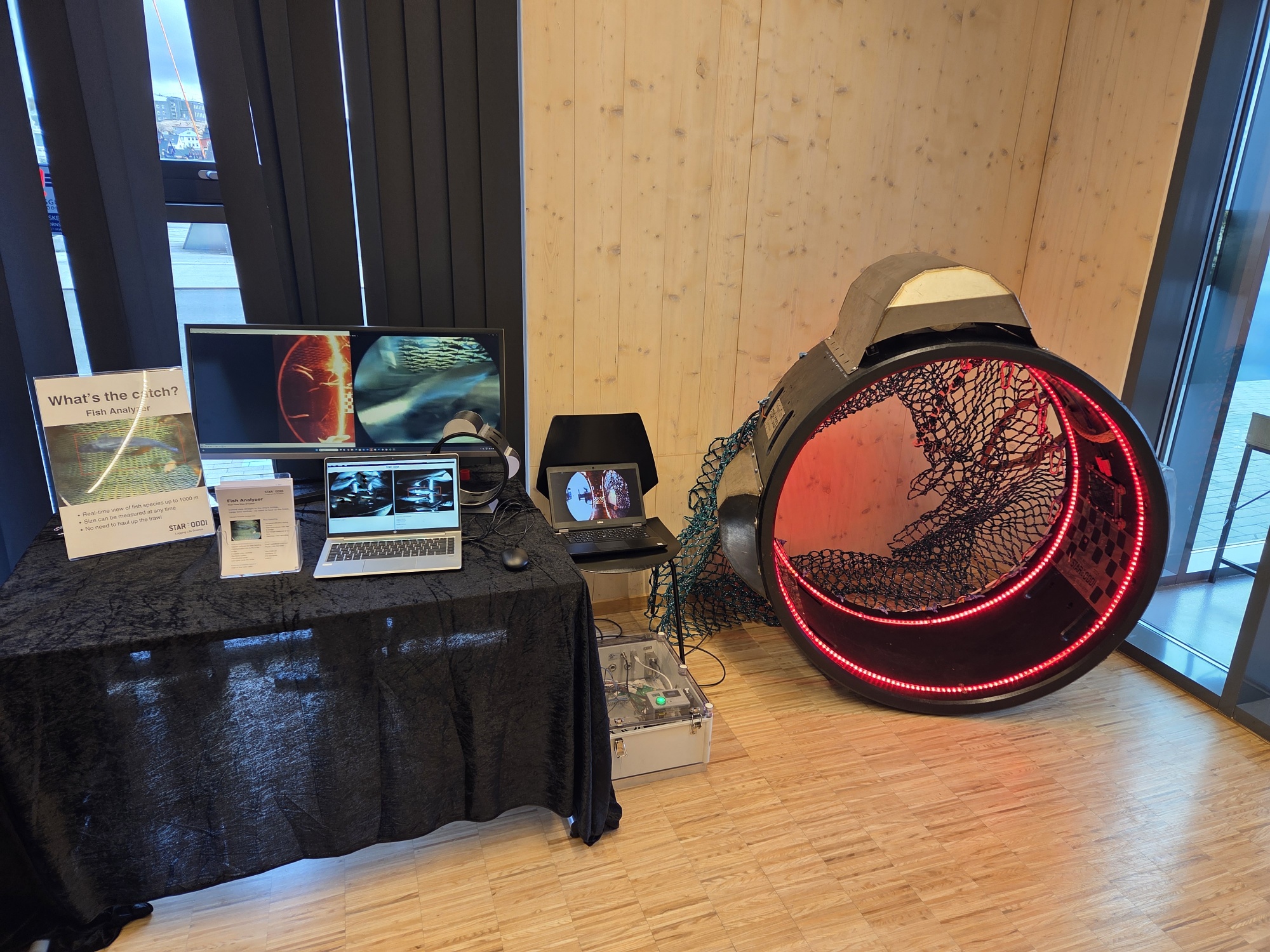

Fish Analyzer system includes
- Seaview software for data handling
- Communication box to PC in the bridge
- 2 subsea video cameras
- Electronic system
- Polyethylene circle
- LED lights inside the circle
External accessory needed
- Coax or fiber optic cable
Technical specifications, preliminary
| Size |
Diameter of the circle is 120 cm |
| Weight, in air | 152 kg |
| Base material | Polyethylene PE |
| Video cameras | Stereo video camera pair on one side, left or right. Two pairs upon request, left and right. |
| Camera resolution | 640 x 480 standard. Other resolution available upon request. |
| Operational pressure/depth | 1000 m |
| Light inside the equipment | LED. Choose between white or red light. |
| Cable type | Coax or fiber optic cable. |
| Control Unit includes |
Electronic system, part of the fish analyser Seaview software for setup/data receiving, analysingand managing data. Video recording is optional in thesoftware. Communication box between cable and PC |
| Communication | Communications through the cable. |
| Power requirements | 150-200W, 230V. Power fed through the cable. |
| Placement in trawl | Cod-end. |
| Optional | Spare light tube (recommended)Battery container |
