Implantable Heart Rate and Temperature Logger

Leadless, minimally invasive and easy to implant. Long term heart rate and body temperature.

Ideal for long- and short term studies in which baseline, stress and immunology responses are recorded in large animals.

Key features

  • Leadless, minimally invasive

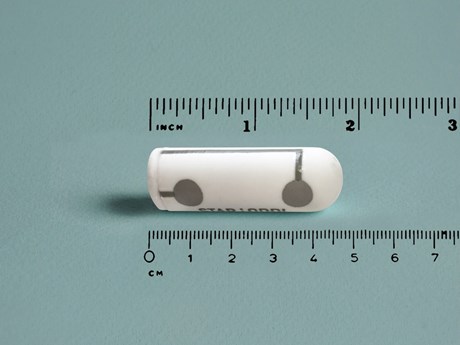

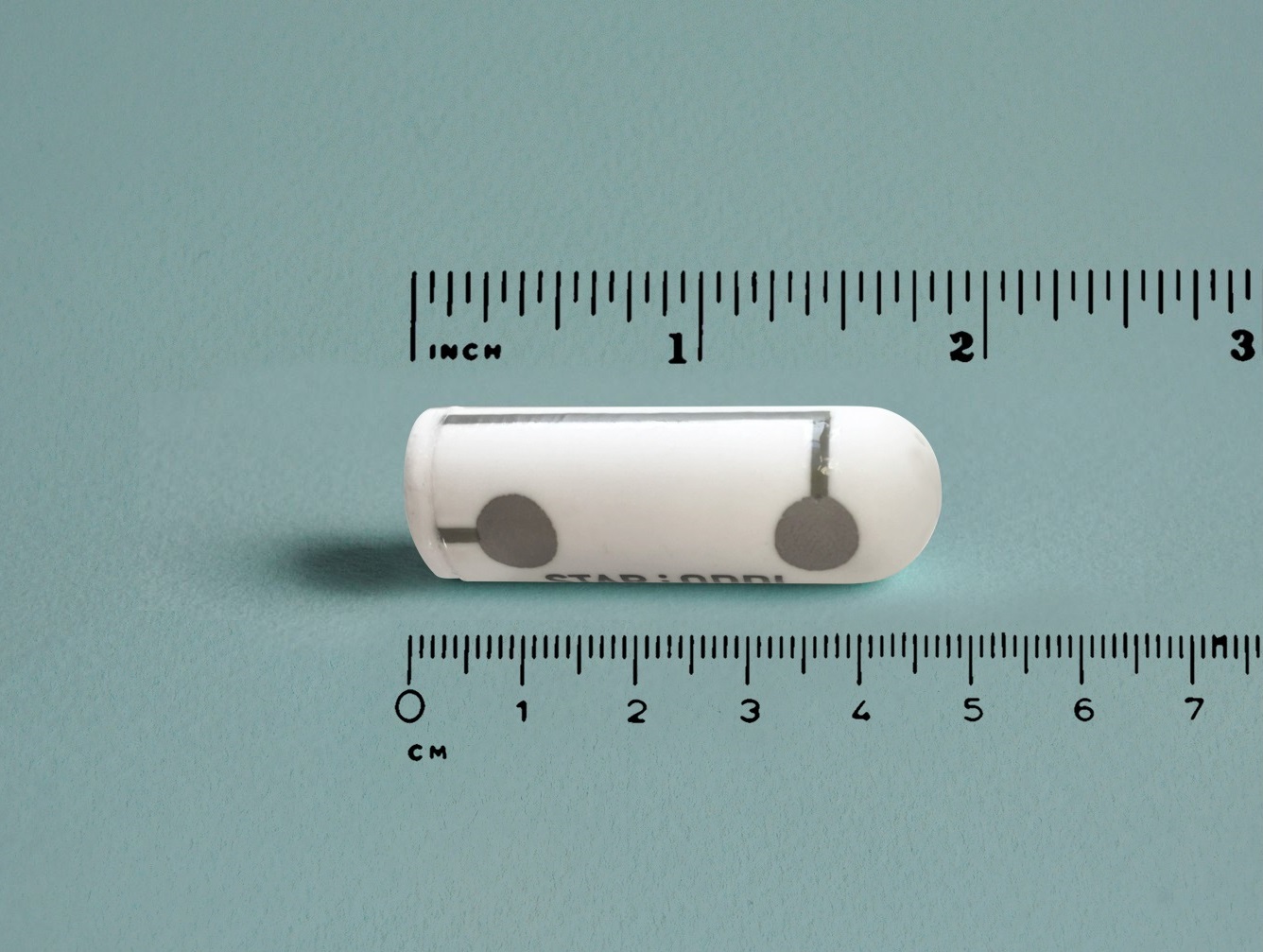

  • Size 46mm x 15mm and 19g
  • Long battery life – typically 19 months
  • Automatic stress-free measurements
  • ECG derived heart rate, including data verification
  • Description

    Leadless, Minimally Invasive

    The DST centi-HRT simultaneously measures long term heart rate and temperature in the study animal. The logger has no external wires, which makes it especially simple to implant. It is made of unique ceramic housing and epoxy and is hermetically sealed, guaranteeing biocompatibility.

    For advice on implantation, please contact us.

    Application

    The logger is ideal for a variety of studies including those looking at behaviour and stress response, in the fields of laboratory animal research, wildlife research, animal welfare and fish physiology.

    Leadless ECG Derived Heart Rate

    The heart rate is derived from a leadless single channel ECG. As the electrodes are part of the housing the logger is especially easy to implant. The logger takes a burst measurement of ECG at the set time interval and calculates the mean heart rate for each recording. For validation purposes, individual ECG bursts can be saved. In addition each burst is graded with a QI (quality index).

    Stress-Free Long-Term Studies

    The logger is especially useful when a comprehensive data set throughout the research is needed with no disturbance to the animal. The heart rate logger has a battery life of 19 months, with sampling interval of 10 min at 600 Hz.
